Echt flacher lüfterloser Touch Panel PC
Wesentliche Merkmale:

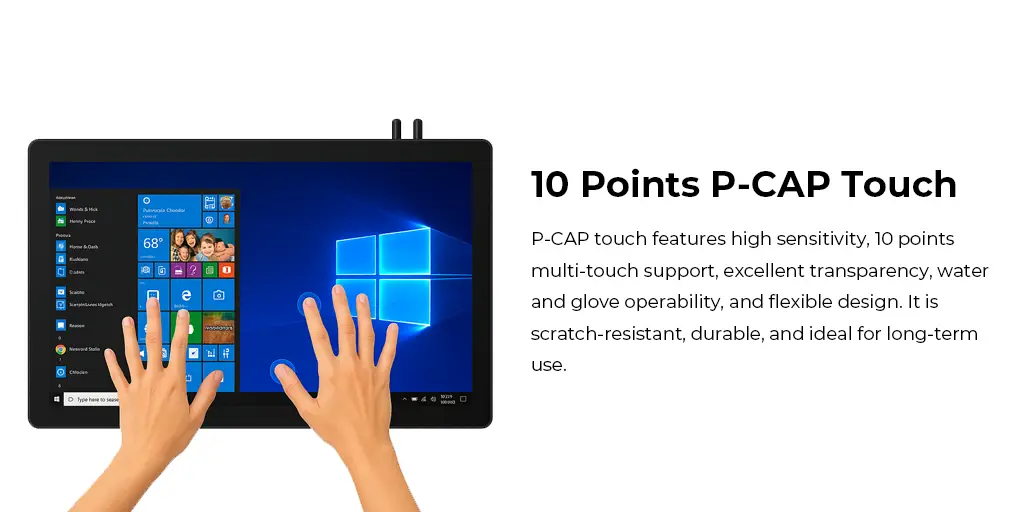

1. Kapazitiver Touchscreen: 10-Punkt kapazitiver Touchscreen, 5 ms Reaktionszeit.

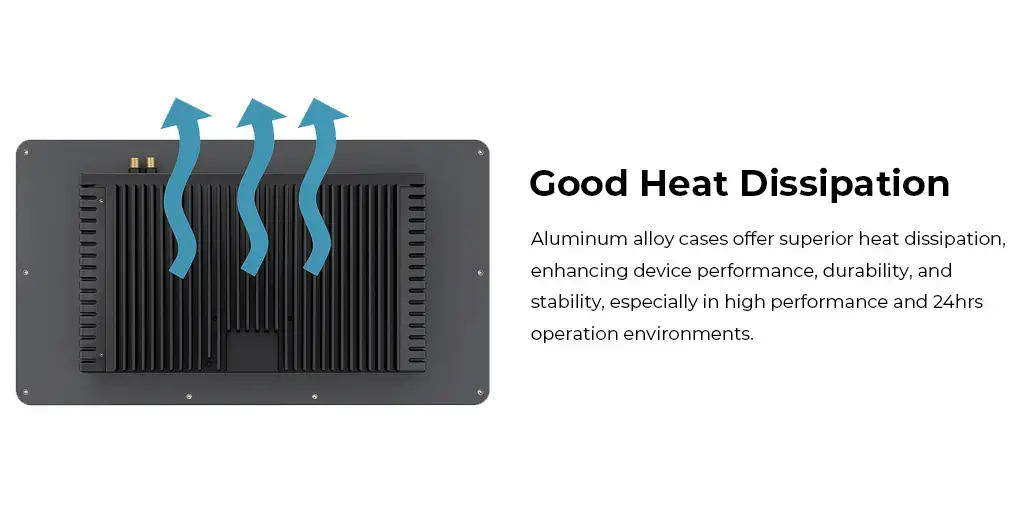

2. Langlebiges Material:Aluminium-Legierung Rahmen & Blech Schale, Korrosion und Oxidation Widerstand.
3. Optionale Farbe für weiß-silber, schwarz, schwarz-silber.

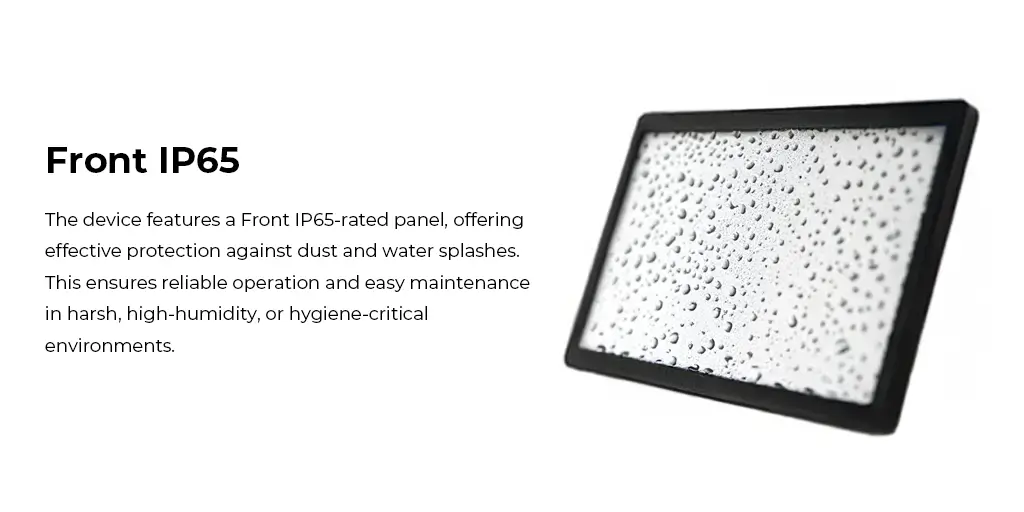

4. Wasserdicht IP65 an der Oberfläche, schlanke & reine flache Struktur.
5. System compatible with touchscreen monitor/Andorid or X86 touch screen AIO PC.

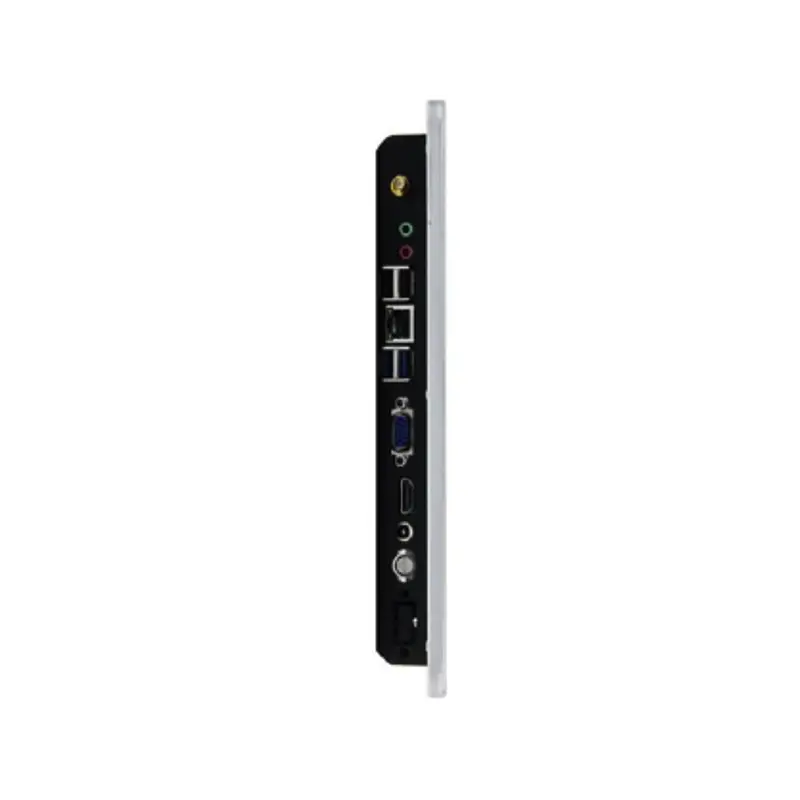

6. Flexible customizatoin for USB and COM por, color, logo, camera, card reader, fingerprint, PoE power supply.
7. Plug and play, no any driver needed.
8. With good anti-interference to get stable operatoin guarantee.
True Flat Series – Versatile All-in-One Interactive Touch Solution
The True Flat Series is a user-friendly and highly acclaimed interactive terminal that seamlessly combines multiple technologies into a single, integrated solution. It brings together the advantages of a touchscreen interface, built-in computing system, multimedia playback, audio output, internet connectivity, and streamlined industrial design to meet the needs of modern digital interaction.
Designed for simple, practical, and high-performance operation, the True Flat Series features a pure flat front panel structure, ensuring a sleek appearance, easy maintenance, and enhanced durability. Its high-sensitivity touch technology delivers a smooth, accurate, and responsive user experience, making it ideal for a wide range of applications such as interactive displays, information kiosks, digital signage, and self-service systems.
Whether used in retail, transportation, education, hospitality, or industrial settings, the True Flat Series provides a robust platform for interactive engagement and efficient communication.
Anwendungen
Größe | Modell | Bildseitenverhältnis | Auflösung |
---|---|---|---|
7″ | UMSC07-TD | 16:9 | 1024*600 |
8″ | UMSC08-DM | 4:3 | 1024*768 |
10.1″ | UMSC101-TD | 16:9 | 1920*1200 |
11.6″ | UMSC116-TD | 16:9 | 1920*1080 |
12.1″ | UMSC121-DM | 4:3 | 1024*768 |
13.3″ | UMSC133-TD | 16:9 | 1920*1080 |
14″ | UMSC14-TD | 16:9 | 1920*1080 |
15″ | UMSC15-TD | 4:3 | 1024*768 |
15.6″ | UMSC156-TD | 16:9 | 1920*1080 |
17″ | UMSC17-DM | 4:3 | 1280*1024 |
18.5″ | UMSC185-TD | 16:9 | 1366*768 |
19″ | UMSC19-DM | 4:3 | 1280*1024 |
21.5″ | UMSC215-TD | 16:9 | 1920*1080 |
24″ | UMSC24-TD | 16:9 | 1920*1080 |
27″ | UMSC27-TD | 16:9 | 1920*1080 |
32″ | UMSC32-TD | 16:9 | 1920*1080 |
43″ | UMSC43-TD | 16:9 | 1920*1080 oder 4K |
55″ | UMSC55-TD | 16:9 | 1920*1080 oder 4K |
65″ | UMSC65-TD | 16:9 | 1920*1080 oder 4K |
86″ | UMSC86-TD | 16:9 | 1920*1080 oder 4K |
Touchscreen-Parameter | |
---|---|
Touchscreen: | Kapazitive Berührung |
Reaktionszeit: | 5ms |
Berührungspunkte: | 10 Punkte Multi-touch |
Materialien zum Anfassen: | Finger, Eingabestift |
Abtastfrequenz: | 200 Hz |
Scanning-Genauigkeit: | 4096×4096 |
Kommunikationsmodus: | USB 2.0 / 3.0 mit voller Geschwindigkeit |
MTBF: | 5000 Millionen Mal |
Betriebsstrom: | 180Ma / DC+5V |
Antilicht-Interferenz: | Bei Sonnenlicht und anderen Lichtern |
Touch-Datenausgabe: | Koordinatenausgabe |
Härte: | Mohs 7 Explosionssicheres gehärtetes Glas |
Betriebssystem: | Windows 10 / 11 / Linux / Android |
Fahrer: | Kostenloser Treiber, Plug and Play |
LED-Bildschirm-Parameter | |
Bildschirmtyp: | LED-Hintergrundbeleuchtung, Typ A |
Aktualisierungsfrequenz: | 60Hz |
Betrachtungswinkel: | 89° / 89° / 89° / 89° (R / L / U / D) |
MTBF: | 50.000 Stunden |
Stromversorgungsparameter | |
Eingangsleistung: | 110-240V AC 50 / 60Hz |
Stromverbrauch: | 60W oder 120 ~ 280W |
Stromverbrauch im Standby-Modus: | 1W |
Arbeitsumfeld | |
Betriebstemperatur: | -10°C ~ 60°C |
Luftfeuchtigkeit bei Betrieb: | 10% ~ 80% |
Lagertemperatur: | -20°C ~ 80°C |
Luftfeuchtigkeit bei Lagerung: | 5% ~ 90% |
Computer-Konfiguration | |||
---|---|---|---|
Programm: | Android | X86 Standard | X86 Deluxe |
Chip: | RK3368 / RK33288 / RK3399 | Intel Celeron Quad Core J1900 | Intel Core i3 / i5 / i7 |
Gedächtnis: | 2GB / 4GB | 2GB / 4GB / 8GB / 16GB | |
Lagerung: | 8GB / 16GB / 32GB | SSD 32GB / 64GB / 128GB / 256GB / 512GB, HDD 500GB / 1T | |
Grafiken: | Android HD | Kern-Grafiken | |
Auflösung: | 720P / 1080P | ||
OS: | Android 7.1 | Windows 10 / 11 / Linux | |
Netzwerk: | Gigabit-Netzwerkkarte; Drahtlosmodul 802.11a / b / g / n |
