RML-12RT
Características principales:
1. Intel® Tigerlake Core i5 1135G7/1145G7E
2. 12.1″ 1024x 768 / Resistive Touch
3. 1,000 nits Sunlight Readable high brightness (Optional)
4. OSD buttons: Power On/Off, Brightness +/- , Touch On/Off & LED Indicator
5. Flush mount w/removable handles
6. D38999: Power 9~36V DC Input
7. MIL-STD-810G vibration/ shock

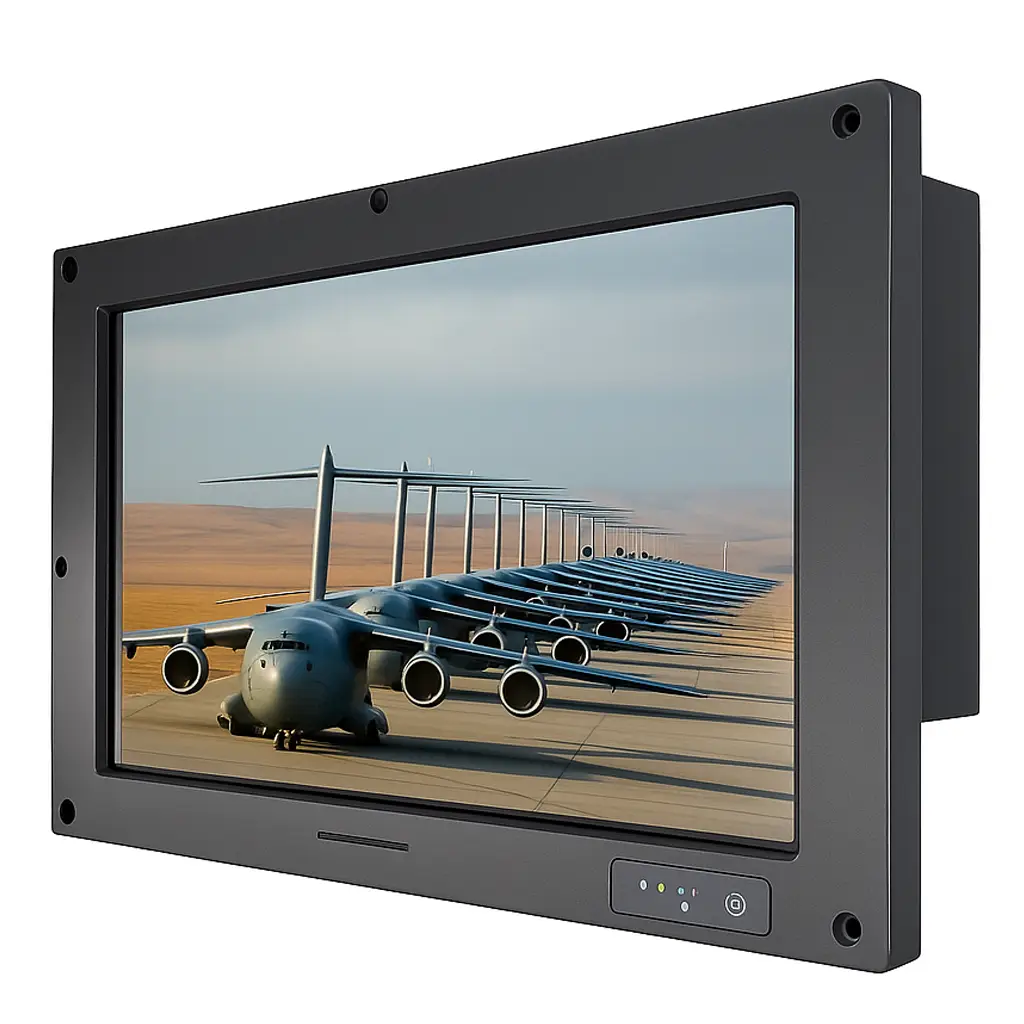

12.1″ Rugged Panel PC for Navy Dashboard and Maritime Control Systems
Engineered for naval operations and maritime control interfaces, this 12.1″ rugged Panel PC offers a powerful and durable solution for demanding dashboard applications. Powered by the latest Intel® Tiger Lake Core i5-1135G7 or i5-1145G7E processors, it ensures responsive performance and energy-efficient computing for real-time monitoring, navigation, and communication.
The 4:3 resistive touchscreen provides stable and precise input control in marine conditions, with an optional 1,000 nits high brightness panel to maintain excellent visibility under direct sunlight. Its OSD buttons—covering power, brightness adjustment, and touch on/off—offer intuitive interaction, while integrated LED indicators provide clear system status feedback.

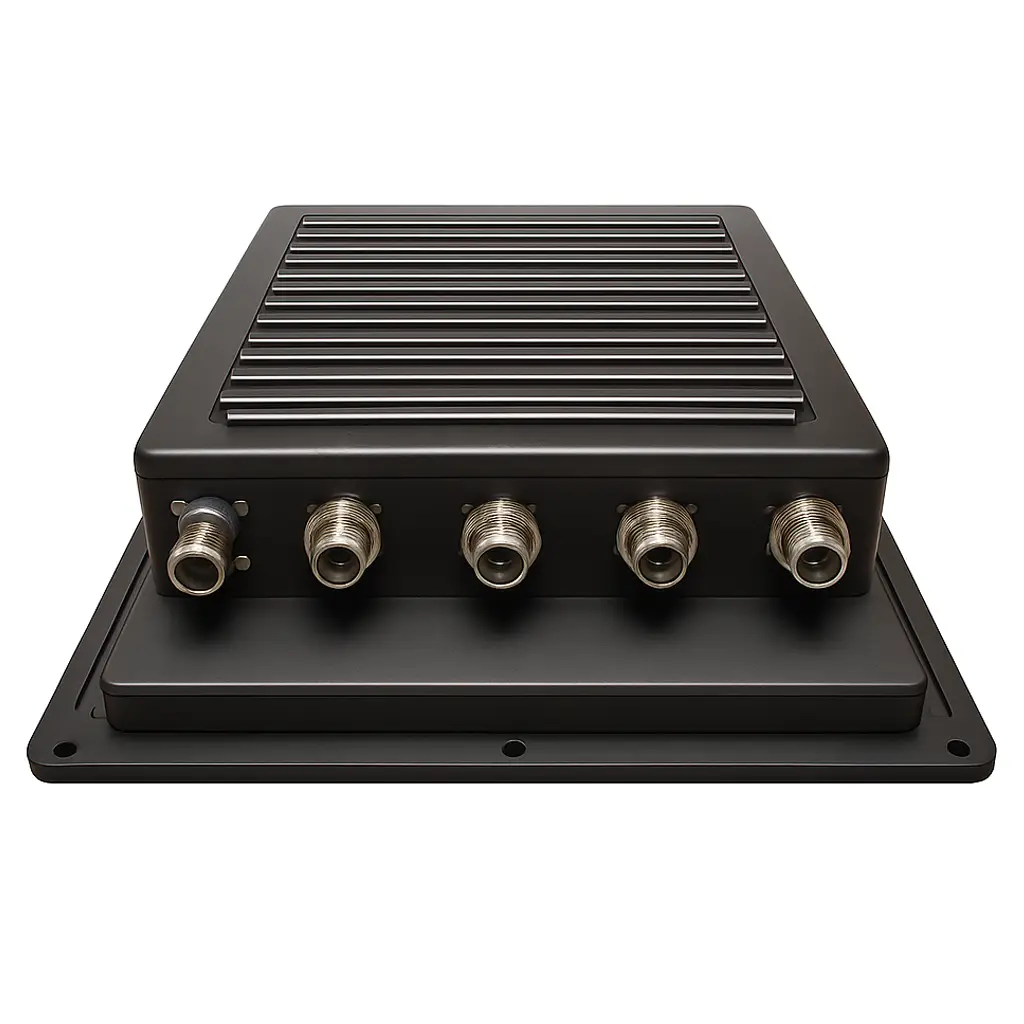

Designed with a flush-mount chassis and removable front handles, the system is easy to install and service within confined dashboard panels. The wide 9~36V DC input is delivered through a secure MIL-DTL-D38999 connector, ensuring safe and reliable power delivery even in high-vibration environments. Fully compliant with MIL-STD-810G for vibration and shock resistance, this unit is built to perform in the rugged conditions of naval vessels and marine platforms.

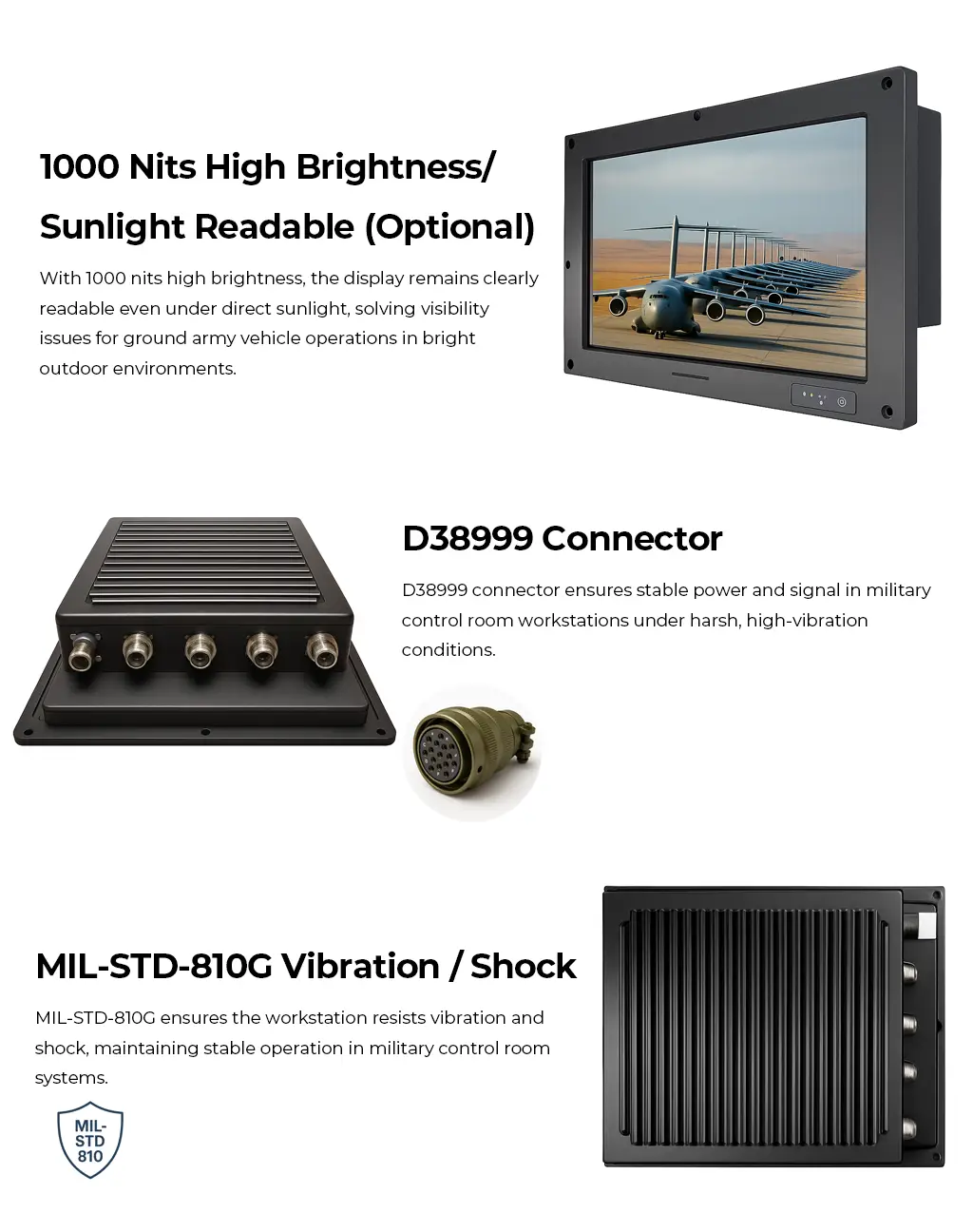

Características principales
- 12.1″ TFT LCD with 1024×768 resolution and resistive touchscreen
- Optional 1,000 nits brightness for sunlight readability
- Intel® Tiger Lake Core i5-1135G7 / 1145G7E processors
- OSD control buttons: Power, Brightness +/-, Touch On/Off
- LED status indicators for real-time system feedback
- Flush mount chassis with removable front handles
- 9~36V wide-range DC input via MIL-DTL-D38999 connector
- MIL-STD-810G certified for shock and vibration resistance
Ventajas
- Built for harsh naval environments with stable touch input and sealed durability
- Glove-compatible resistive touch ideal for wet or rough conditions
- Sunlight-readable option supports outdoor and bridge applications
- Easy front access with removable handles for streamlined maintenance
- Secure power and signal integrity with military-grade connectors
- Compact and rugged, ideal for tight spaces and mission-critical interfaces
Ideal para
- Navy ship dashboards and control panels
- Bridge navigation systems and marine radar interfaces
- Maritime communications and monitoring stations
- Vessel automation and onboard control systems
- Harsh-environment defense or coast guard maritime platforms
