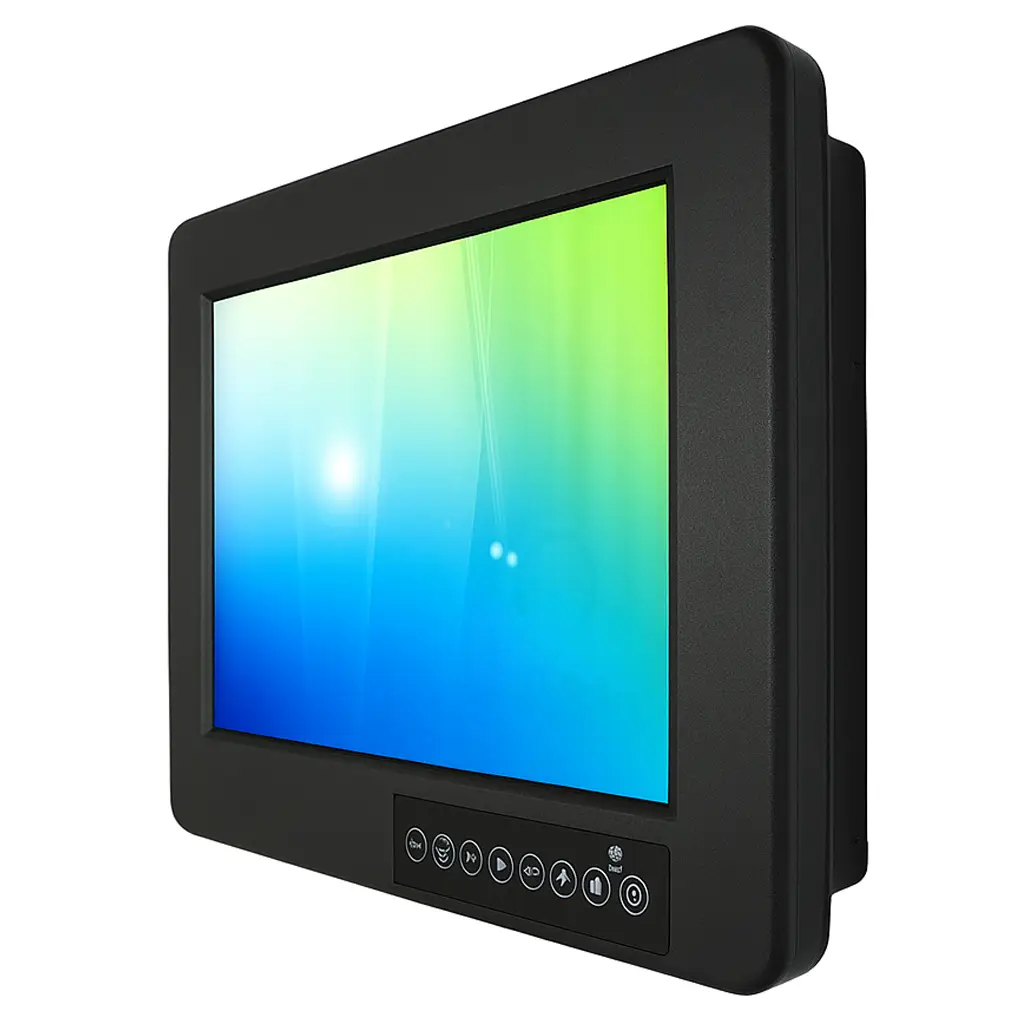

RML-12R

Add to quote

Key Features:

1. 12.1″ 4:3 1024x 768, 1000 nits hight brightness
2. IP66 Rugged, Compact Housing
3. -20°C to 70°C Wide Range Operating temperature
4. MIL-STD-810G vibration, shock, humidity and temperature
5. MIL-STD-461F: CE102, RE102 Certified
6. Default Black Color, others for customization
7. VESA mount / Panel mount for option

RML-12R
RML-12R - Image 2

12.1″ Rugged Display for Ground Army Vehicles

This 12.1″ 4:3 rugged military-grade display is designed for reliable performance in demanding ground army vehicle applications. Featuring 1000 nits high brightness, it ensures excellent visibility under direct sunlight. Its compact IP66-rated enclosure offers strong resistance against water, dust, and harsh environmental elements. Built to withstand extreme operating temperatures from -20°C to 70°C, the display complies with MIL-STD-810G standards for vibration, shock, humidity, and temperature endurance, and is certified to MIL-STD-461F for electromagnetic compatibility. With flexible mounting options and customizable housing colors, it is ideal for mission-critical field deployments.

Key Features

  • 12.1″ 4:3 TFT LCD, 1000 nits sunlight-readable brightness
  •  IP66-rated rugged housing for water and dust protection
  •  Wide operating temperature range: -20°C to 70°C
  • MIL-STD-810G compliant: vibration, shock, humidity, temperature
  • MIL-STD-461F certified: CE102, RE102 for EMI/EMC protection
  • Default black finish, other colors customizable upon request
  • VESA or panel mounting options for easy vehicle integration

Advantages

  • Maintains performance in both desert heat and sub-zero environments
  • Rugged design ensures field reliability in harsh terrains
  • Clear, glare-free display for mission-critical readability
  • Flexible installation and aesthetic customization for varied use cases
  • Fully compliant with military environmental and EMI standards

Ideal For

  • Ground army vehicles
  • Tactical command units
  • Military navigation and surveillance systems
  • Mobile communication platforms
  • Harsh environment defense operations

Main System
Brightness Control 0 ~ 100% Dimming by OSD buttons
Thermal Control Fanless thermal design
Power Protection Reversed Polarization Protection
OSD Buttons On/Off, Right/Left, Menu, ESC
Bonding Optical Bonding (Optional)
EMI resistance Front EMI Mesh Filter
Pressure moderation Air-vent regulator integrated
I/O Interface D38999: 1 x VGA/ 1 x DVI-I/ 1 x USB for touch screen
9~ 36V DC Input
LCD Panel
Panel size 12″
Resolution 1024 x 768
Aspect ratio 4:3
Support Color 16.2M colors
Brightness (cd/m²) 1,000 nits Sunlight Readable (optional)
Contrast ratio 1000:1
View angle 88°/88°/88°/88° (R/L/U/D)
Touch Panel
Touchscreen Type 5- wire resistive touch screen ( Optional)
Touch Interface USB
Power Supply
External Power Supply 9~36V DC Input (Reversed Polarization Protection)
Power consumption 20 watts (typical)
Enclosure
Material Anti-corrosion powder coating
Color Black Color (Others by request)
IP grade Full IP66
Operating Environment
Temperature Range Operating: -20 to 70°C, storage :-40 to 80°C
Humidity 10% to 95% ( Non Condensing)
Shock MIL-STD-810F Method 516.6
Vibration MIL-STD-810F Method 514.6C-3
Humidity MIL-STD-810G Method 507.5-7
High Temperature MIL-STD-810G Method 501.5-II
Low Temperature MIL-STD-810G Method 502.5
EMI Compliance MIL-STD-461F, CE102, RE102
EMC Compliance CE/ FCC class B
PCB protection Silicon conformal coating on PCB internally
Dimming 0-100 % dimming function
Packing Details
Gross weight 4KG
Product Dimension 230 (W) x 194 (H)x 55(D)mm
Other
Mounting (options) 100 x 100 VESA mount/ Panel mount (Optional)
Warranty 1 year warranty
Mechanical Drawing
